Shaped bricks

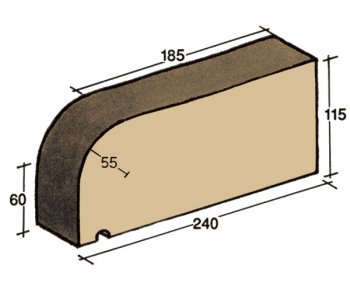

  • F-01, window sill capping tile, rounded on one side F-01, window sill capping tile, rounded on one side

    rounded at one end, r = 55 mm, with drip edge

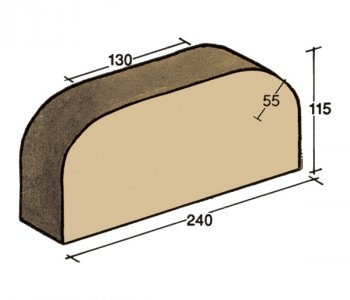

  • F-02, wall capping brick, single rounded edge at both ends F-02, wall capping brick, single rounded edge at both ends

    single rounded edge at both ends, r = 55 mm

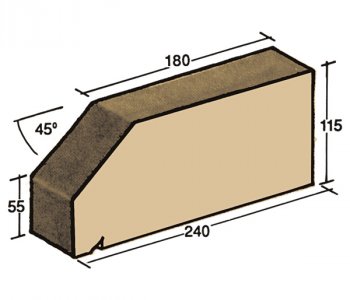

  • F-05, window sill capping tile F-05, window sill capping tile

    bevelled at one end 45°, head height 55mm, with drip edge

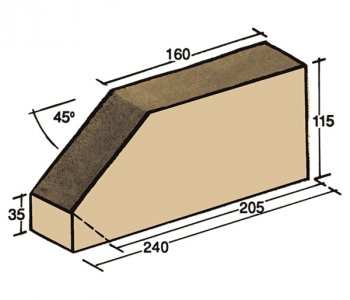

  • F-10, exterior corner tile F-10, exterior corner tile

    bevelled at one end 45°, only available as extruded!
  • F-12, exterior corner tile F-12, exterior corner tile

    for forming door or window jambs, external corners and columns, double bevelled at one end 45°, only available as hand-moulded!
  • F-03, window sill capping tile F-03, window sill capping tile

    rounded at one end, r = 155 mm, with drip edge

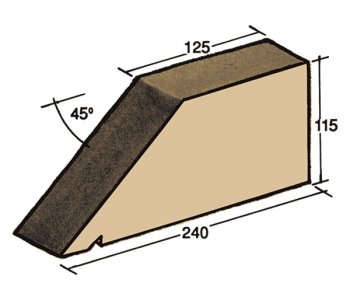

  • F-06, window sill capping tile F-06, window sill capping tile

    bevelled at one end 45°, with drip edge

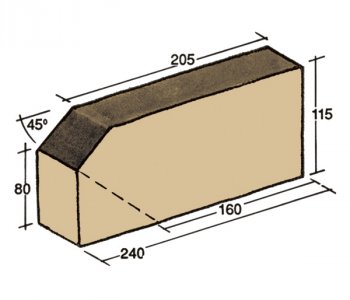

  • F-11, exterior corner tile F-11, exterior corner tile

    chamfered at one end 45°

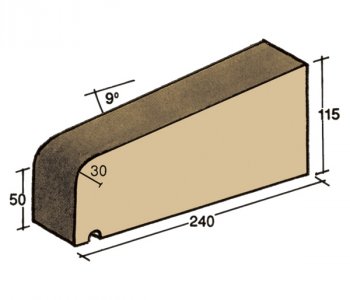

  • F-14, window sill capping tile F-14, window sill capping tile

    bevelled 9°, rounded at one end, r = 30 mm, with drip edge
  • F-15, window sill capping tile F-15, window sill capping tile

    bevelled and rounded, r = 30 mm, with drip edge, with window frame connection, 30 mm high, 60 mm deep

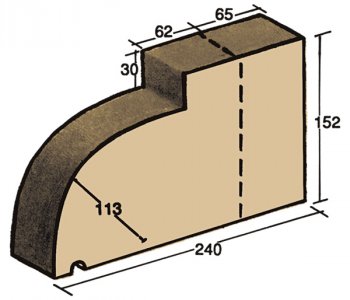

  • F-16, window sill capping tile F-16, window sill capping tile

    rounded, r = 113 mm, with drip edge, with window frame connection, 30 mm high, depth 62 mm

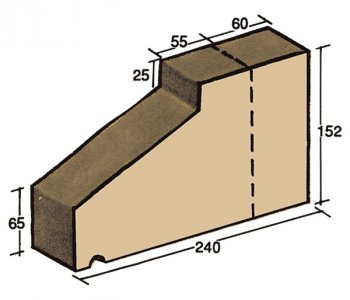

  • F-17, window sill capping tile F-17, window sill capping tile

    chamfered, head height 65 mm, with drip edge, with window frame connection, 25 mm high, depth 55 mm

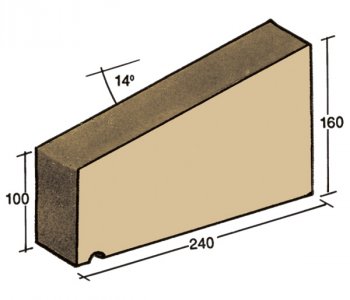

  • F-18, window sill capping tile F-18, window sill capping tile

    bevelled 14°, head height 100 mm, with drip edge

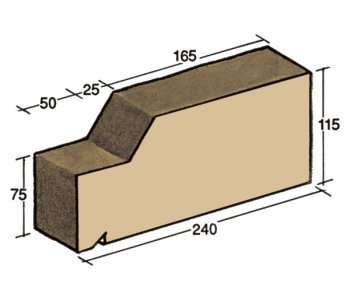

  • F-19, window sill capping tile F-19, window sill capping tile

    chamfered with following straight offset, 50 mm wide, head height 75 mm

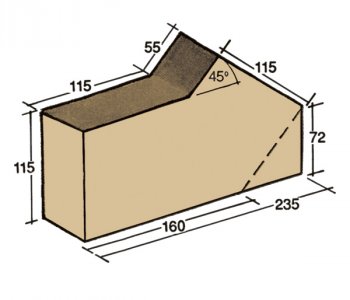

  • F-20, interior corner tile, 45°, inside F-20, interior corner tile, 45°, inside

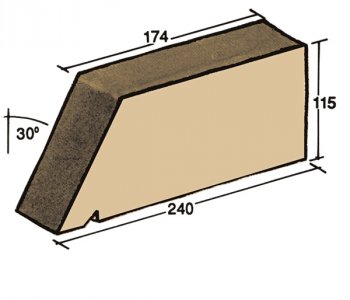

  • F-22, window sill capping tile F-22, window sill capping tile

    bevelled at one end 30°, with drip edge

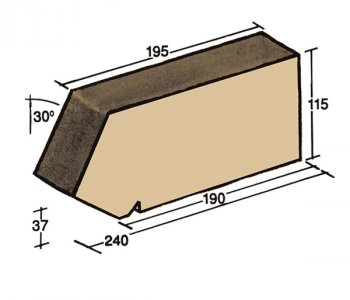

  • F-23, window sill capping tile F-23, window sill capping tile

    double-bevelled at one end 30°, with drip edge

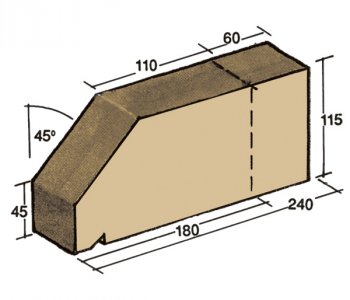

  • F-26, window sill capping tile F-26, window sill capping tile

    chamfered at one end 45°, head height 45 mm, with drip edge

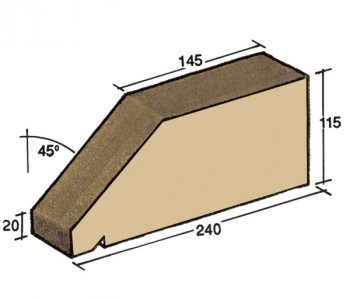

  • F-27, window sill capping tile F-27, window sill capping tile

    chamfered at one end 45°, head height 20 mm, with drip edge

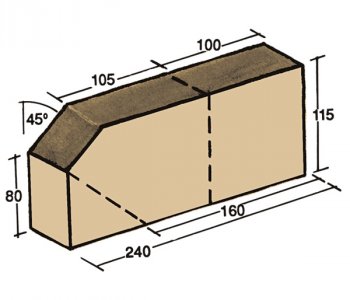

  • F-30, corner tile F-30, corner tile

    chamfered at one end 45°

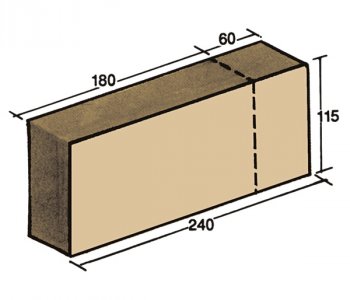

  • F-31, shaped brick F-31, shaped brick

    for two fitting pieces 180 + 60 mm long

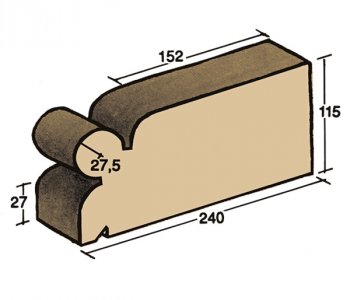

  • F-33, cornice brick F-33, cornice brick

    profiled on one side, with round bar r = 27.5 mm, with drip edge

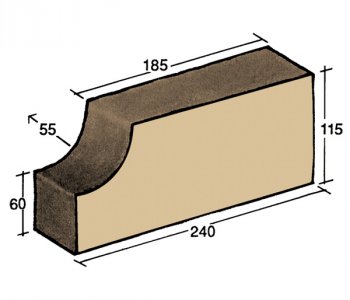

  • F-34, jamb brick F-34, jamb brick

    concave rounded at one end, r = 55 mm, head height 60 mm

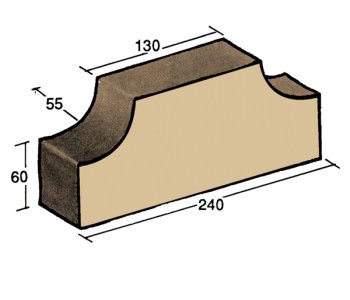

  • F-35, ornamental brick F-35, ornamental brick

    concave rounded at both ends r = 55 mm, head height 60 mm

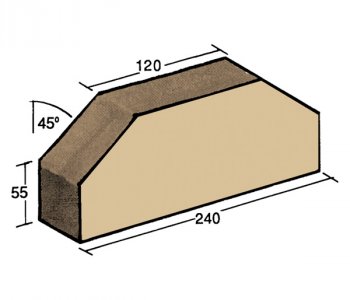

  • F-36, wall capping brick F-36, wall capping brick

    chamfered at both ends 45°, head height 55 mm, with drip edge

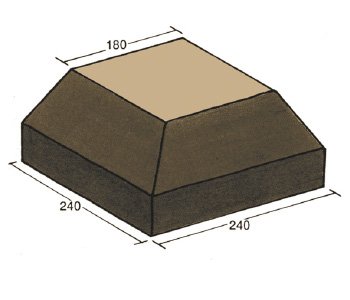

  • F-37, exterior corner tile F-37, exterior corner tile

    for base or wall capping square plate 240/240 mm, with truncated cone, upper surface 180/180 mm

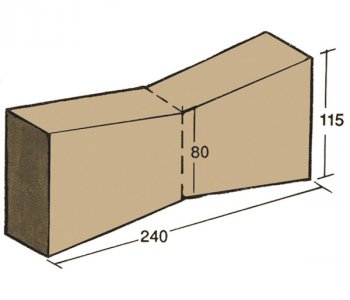

  • F-38, double wedge tile F-38, double wedge tile

    head height 115/80 mm

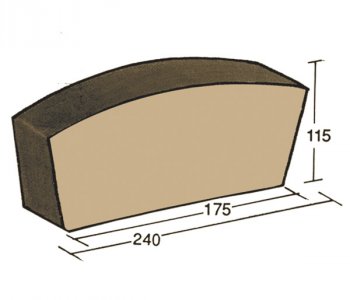

  • F-39, capping tile F-39, capping tile

    wedge-shaped arched r = 367 mm
  • F-45, window sill capping tile F-45, window sill capping tile

    chamfered, head height 71 mm, with drip edge, with window frame connection, 25 mm high, 40 mm deep

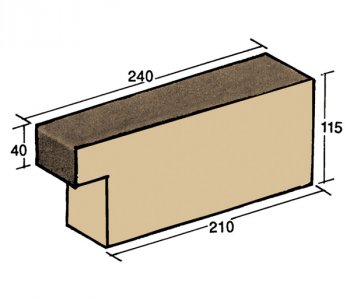

  • F-46, lipped brick F-46, lipped brick

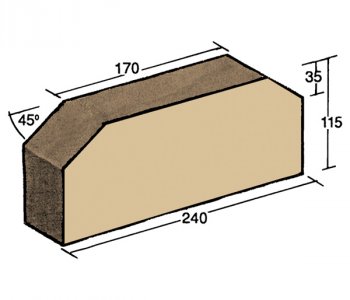

  • F-47, capping tile F-47, capping tile

    chamfered at both ends 45°, head height 80 mm

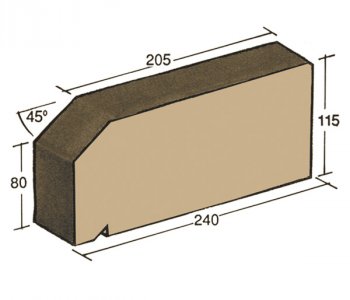

  • F-48, parapet tile F-48, parapet tile

    chamfered at one end 45°, head height 80 mm, with drip edge

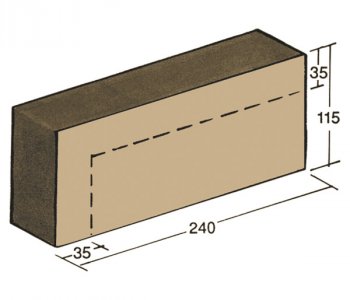

  • F-50, lintel facing brick F-50, lintel facing brick

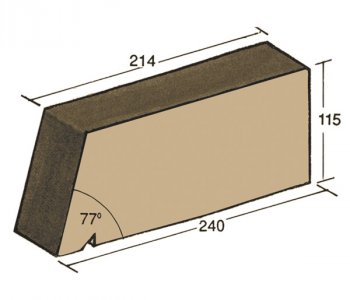

  • F-51, capping tile F-51, capping tile

    bevelled at one end 77°, with drip edge

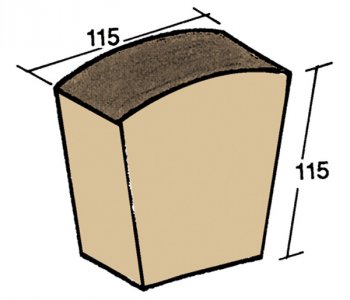

  • F-59, corner sheathing tile F-59, corner sheathing tile

    arched, r = 400 mm

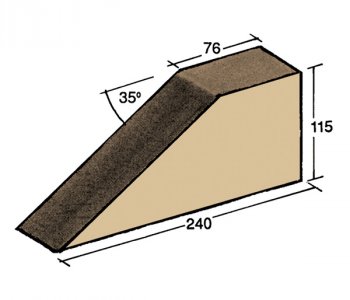

  • F-64, corner tile F-64, corner tile

    bevelled 35°
  • F-68, column sheathing brick F-68, column sheathing brick

    arched, r = 300 mm

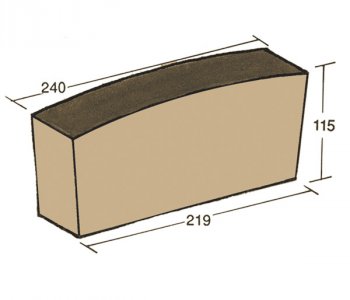

  • F-78, shaped brick F-78, shaped brick

    Well brick, curved, r = 1250 mm

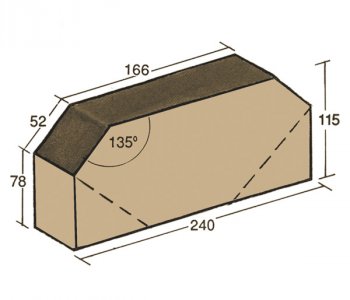

  • F-83, shaped brick F-83, shaped brick

    head sides double-chamfered, 37/37 mm with 135°, with

They are the icing on the cake: shaped bricks transform clinker façades into small masterpieces. They have been valued as a design element for centuries. And countless historical buildings serve as witness to the versatility of brick masonry.

The modern age, with its desire for greater individuality, has rediscovered the shaped brick. Its use in façades gives any building an unmistakable face, different from its surroundings but not out of place thanks to the naturalness of the materials used.

OLFRY shaped bricks are produced in the standard formats DF and NF. The exterior shape and the hole pattern of extruded facing bricks are created by the shaped brick nozzle mounted in front of the extruder head of the screw press.

The colours are the same as the standard clinkers and bricks. Where mechanical production of shaped bricks is not possible or only possible to a limited extent, we shall produce the desired format by subsequent treatment or manual shaping of brick blanks. In this way, shaped bricks can also be made as solid bricks and with other surfaces. Ask us for more details!
